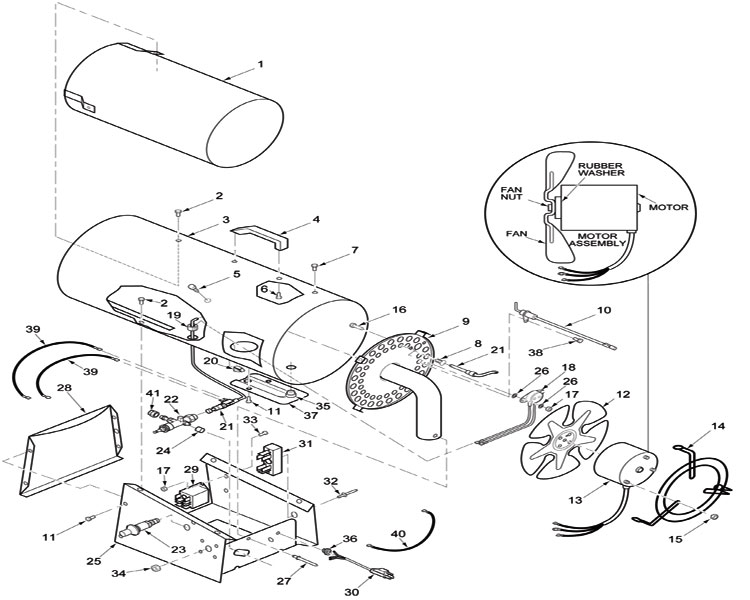

RLP50



1 099568-01 Inner Shell (Combustion Chamber)
2 M11084-26 Hex Tap Screw, #10-16 x 3/8 " ( No Longer Available )
3 099599-02AC Outer Shell
4 M51104-01 Handle
5 099230-01 Hex Tap Shoulder Screw
6 M11084-29 Hex Tap Screw, #10-16 x 3/4 "
7 M11084-27 Hex Tap Screw, #10-16 x 1/2 "
8 099237-01 Thermocouple Clip
9 099727-03 Burner Assembly
10 100588-01 Electrode Ignitor
11 M11084-38 Hex Tap Screw, #8-18 x 3/8 "
12 099537-03 Fan
13 100589-01 Motor Assembly (Includes Rubber Washer and Fan Nut)
14 099540-01 Fan Guard
15 097384-02 Captive Washer Nut
16 097968-05 Hex Screw, #4-40 x 1/2 "
17 NPC-00C Hex Nut, #4-40
18 101732-01 Thermal Switch Kit
19 097776-01 Universal Bushing
20 099542-01 Wire Clip
21 099538-01 Thermocouple
22 100591-01 Automatic Control Valve w/Orifice
23 102445-01 Piezo Ignitor
24 078978-03 Sleeve Cap
25 103892-02 Base
26 100397-01 Lock Washer, #4
27 099202-02 Steel Rivet, 1/8 "
28 100594-01AA Painted Cover
29 100184-02 Relay
30 098219-25 Power Supply Cord Assembly ( Use Replacement 098219-38 )
31 099125-01 Terminal Board
32 099157-01 Rivet ( No Longer Available )
33 097968-01 Hex Screw, 4-40 x 1/4 "
34 098835-01 Hex Nut, 1/2-28 "
35 M50104-01 Shorty Bushing ( No Longer Available )
36 M11143-1 Strain Relief Bushing
37 100596-01AC Wire Guard
38 M11084-37 Hex Screw, 8-18 x 1/4 "
39 079010-14 Wire Assembly, Red
40 079010-21 Wire Assembly, White
41 099460-01 Hex Cap, 1/8-27 NPTF
ACCESSORIES
LPA1020 10' Hose
LPA2140 Regulator ( Use Replacement 113792-01 )
LPA3055 Hose and Regulator Assembly





Service Manual
