R70AT
- REDDY HEATERS R70AT COMMON REPLACEMENT PARTS
- 097308-05 Motor
- 102482-02 Ignition Control
- PP203 Safety Control (replaces HA3003, 098205-01 & 098205-04)
- PP211 Spark Plug (replaces HA3012)
- M50876-01 Fuel Filter
- PP213 Filter Kit (replaces M29633, M29612-01)
- PP208 Nozzle (replaces HA3008)
- PP216 Photo Cell (replaces HA3019)
- PP204 Rotor Kit (replaces HA3004)

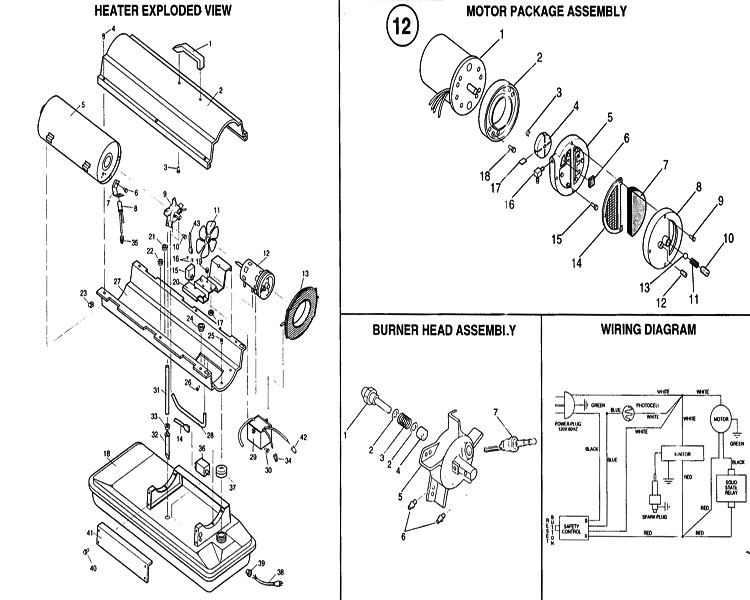

| 1 | M51104-01 | Handle |
| 2 | 098511-36 | Upper Shell ( No Longer Available ) |
| 3 | M11084-29 | Screw #10-16 x 3/4" |
| 4 | 100647-01 | Screw #10-16 x 1/2" ( Use Replacement M15823-27 ) |
| 5 | 098512-12 | Combustion Chamber ( No Longer Available ) |
| 6 | M10908-2 | Screw #6/32 x 3/8" |
| 7 | M16660 | Photocell Bracket |
| 8 | HA3019 | Photocell Assembly ( Use Replacement PP216 ) |
| 9 | **** | Burner Head Assembly |
| 9-1 | HA3008 | Nozzle ( Includes Sleeve ) ( Use Replacement PP208 ) |
| 9-2 | M10659-1 | Nozzle Seal Washer |
| 9-3 | M108091 | Nozzle Seal Spring |
| 9-4 | M8882 | Nozzle Seal |
| 9-5 | M51098-02 | Burner Head Body ( No Longer Available ) |
| 9-6 | M50820-01 | Barb Fitting |
| 9-7 | HA3012 | Spark Plug ( Use Replacement PP211 ) |
| 10 | M11084-27 | Screw #10-16 x 1/2" |
| 11 | M51107-01 | Fan |
| 12 | **** | Motor and Pump Assembly |
| 12-1 | 097308-02 | Motor ( Use Replacement 097308-05 ) |
| 12-2 | 079975-02 | Pump Body |
| 12-3 | M22009 | Insert |
| 12-4 | M22456-1 | Rotor ( Use Replacement PP204 ) |
| 12-5 | M29608 | Pump End Cover |
| 12-6 | M29632 | Lnt Filter ( Use Replacement PP213 ) |
| 12-7 | M29633 | Intake Filter ( Use Replacement PP213 ) |
| 12-8 | M29609 | Filter End Cover |
| 12-9 | M12461-31 | Screw #10-32 x 1" |
| 12-10 | M27694 | Adjusting Screw ( Use Replacement PP217 ) |
| 12-11 | M10993-1 | Pressure Relief Spring ( Use Replacement PP217 ) |
| 12-12 | M22997 | Plug ( Use Replacement PP217 ) |
| 12-13 | M8940 | Steel Ball 1/4" Dia ( Use Replacement PP217 ) |
| 12-14 | M29612-01 | Output Filter ( Use Replacement PP213 ) |
| 12-15 | M12461-31 | Screw #10-32 x 1" |
| 12-16 | M50016 | Enbow 90ยบ ( No Longer Available ) |
| 12-17 | M8643 | Blade ( Use Replacement PP204 ) |
| 12-18 | FHPF3-2C | Screw #10-32 x 1/4" |
| 13 | M51105-01 | Fan Guard |
| 14 | M16841-16 | Wire Assembly ( Red 6" ) ( No Longer Available ) |
| 15 | 097061-01 | Solid State Relay ( Use Replacement 107850-01 ) |
| 16 | M15823-39 | Screw #8-18 x 1/2" |
| 17 | NTC-4C | Hex Lock Nut 1/4-20 ( No Longer Available ) |
| 18 | 098513-24 | Fuel Tank ( No Longer Available ) |
| 19 | M50631 | Rubber Bumper ( No Longer Available ) |
| 20 | 101205-01 | Motor Bracket ( No Longer Available ) |
| 21 | M30865-02 | Bushing |
| 22 | M25907 | Bushing |
| 23 | M11271-8 | Clip Nut |
| 24 | M50104-02 | Bushing ( No Longer Available ) |
| 25 | M11084-26 | Screw #10-16 x 3/8" ( No Longer Available ) |
| 26 | M15823-37 | Screw #8-18 x 1/4" |
| 27 | 098511-18 | Lower Shell ( No Longer Available ) |
| 28 | M29652-04 | Airline |
| 29 | 102482-01 | Ignitor Kit |
| 30 | M11084-29 | Screw #10-16 x 3/4" |
| 31 | 079973-01 | Fuel Line |
| 32 | M50876-05 | Fuel Filter ( With Bushing ) |
| 33 | M10990-3 | Rubber Bushing |
| 34 | ** | Wire Connector ( Red Wires ) |
| 35 | ** | Wire Connector ( Blue Wires ) |
| 36 | HA3003 | Safety Control ( Use Replacement PP203 ) |
| 37 | 097702-01 | Fuel Cap Kit ( Includes Gasket ) |
| 38 | 098219-18 | Power Cord ( Use Replacement 098219-38 ) |
| 39 | M11143-1 | Strain Relief Bushing |
| 40 | M11084-26 | Screw #10-16 x 3/8" ( No Longer Available ) |
| 41 | M50899-03AA | Side Cover ( No Longer Available ) |
| 42 | ** | Wire Connector ( White Wires ) |
| 43 | 079010-06 | Wire Assembly ( Red 14 1/2" ) |
| ** | Available at your local hardware store |
- Reddy Heaters R70AT - 70,000 Btu/Hr.
- Kerosene Forced Air Heater
- R70AT Heaters Heat up to 1600 sq. Ft.
- The 5 Gallon Tank Runs Approx. 9.5 Hours Per Tank
- R70AT Reddy Heaters were Manufactured by Desa prior to 2009.
- See DESA Owners manual for more specifications @ www.DesaTech.com
Service Manual
