R35E
- REDDY HEATERS R35E COMMON REPLACEMENT PARTS
- 097308-05 Motor
- 102482-02 Ignition Control
- PP203 Safety Control (replaces HA3003, 098205-01 & 098205-04)
- PP211 Spark Plug (replaces HA3012)
- M50876-01 Fuel Filter
- PP213 Filter Kit (replaces M29633, M29612-01)
- PP208 Nozzle (replaces HA3008)
- PP216 Photo Cell (replaces HA3019)
- PP204 Rotor Kit (replaces HA3004)
- HA1180 Pressure Guage Kit

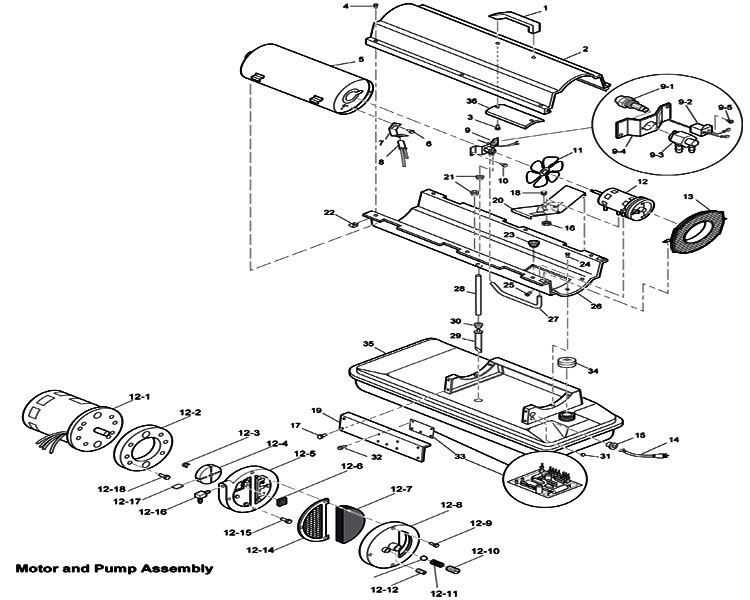

| 1 | M51104-01 | Handle |
| 2 | 098511-36 | Upper Shell (White) ( No Longer Available ) |
| 098511-67 | Upper Shell (Black) ( No Longer Available ) | |
| 3 | M11084-29 | Screw, #10-16 x 3/4 " |
| 4 | 100647-01 | Screw, #10-16 x 1/2 " ( Use Replacement M15823-27 ) |
| 5 | 098512-58 | Combustion Chamber (35 Model) ( No Longer Available ) |
| 6 | M10908-2 | Screw, #6-32 x 3/8 " |
| 7 | 103154-01 | Photocell Bracket |
| 8 | M16656-23 | Photocell Assembly |
| 9 | **** | Burner Head Assembly |
| 9-1 | HA3006 | Nozzle Assembly ( Use Replacement PP206 ) |
| 9-2 | 102548-01 | Ignitor Kit ( Use Replacement PP200SC ) |
| 9-3 | 104056-01 | Nozzle Adapter |
| 9-4 | 102336-01 | Nozzle Adapter Bracket |
| 9-5 | 104023-01 | Screw/Washer Assembly ( No Longer Available ) |
| 10 | M11084-26 | Screw, #10-16 x 3/8 " ( No Longer Available ) |
| 11 | 103684-01 | Fan |
| 12 | **** | Motor and Pump Assembly |
| 12-1 | 102001-01 | Motor ( Use Replacement 102001-28 ) |
| 12-2 | 079975-02 | Pump Body |
| 12-3 | M22009 | Insert |
| 12-4 | M22456-1 | Rotor ( Use Replacement PP204 ) |
| 12-5 | M29608 | Pump End Cover |
| 12-6 | M29632 | Lint Filter ( Use Replacement PP213 ) |
| 12-7 | M29633 | Intake Filter ( Use Replacement PP213 ) |
| 12-8 | M29609 | Filter End Cover |
| 12-9 | M12461-31 | Screw, #10-32 x 1 " |
| 12-10 | M27694 | Adjusting Screw ( Use Replacement PP217 ) |
| 12-11 | M10993-1 | Pressure Relief Spring ( Use Replacement PP217 ) |
| 12-12 | M22997 | Plug ( Use Replacement PP217 ) |
| 12-13 | M8940 | Steel Ball, 1/4 Diameter " ( Use Replacement PP217 ) |
| 12-14 | M29612-01 | Output Filter ( Use Replacement PP213 ) |
| 12-15 | M12461-31 | Screw, #10-32 x 1" |
| 12-16 | 103676-01 | Nylon Elbow, 90° |
| 12-17 | M8643** | Blade (35 Model) |
| 12-18 | FHPF3-5C | Screw, (35 Model) |
| 13 | M51105-01 | Fan Guard |
| 14 | 098219-31 | Power Cord |
| 15 | M11143-1 | Strain Relief Bushing |
| 16 | NTC-4C | Hex Lock Nut, 1/4-20 ( No Longer Available ) |
| 17 | M11084-26 | Screw, #10-16 x 3/8 " ( No Longer Available ) |
| 18 | M50631 | Rubber Bumper ( No Longer Available ) |
| 19 | 097461-03AA | Side Cover |
| 20 | 101205-01 | Motor Bracket ( No Longer Available ) |
| 21 | M30865-02 | Bushing |
| 22 | M11271-8 | Clip Nut |
| 23 | M50104-02 | Bushing ( No Longer Available ) |
| 24 | M11084-26 | Screw, #10-16 x 3/8 " ( No Longer Available ) |
| 25 | M10908-14 | Screw, #8-32 x 3/8 " |
| 26 | 098511-18 | Lower Shell (White) ( No Longer Available ) |
| 098511-81 | Lower Shell (Black) ( Use Replacement 098511-14 ) | |
| 27 | M50814-06 | Rubber Airline ( Use Replacement M50814-03 ) |
| 28 | 079973-01 | Fuel Line |
| 29 | M50876-04 | Fuel Filter |
| 30 | M10990-3 | Rubber Bushing |
| 31 | 101695-01 | Button Plug |
| 32 | 102349-01 | PCB Support ( No Longer Available ) |
| 33 | 104068-03 | Ignition Control Assembly |
| 34 | 097702-01 | Fuel Cap (Includes Gasket) |
| 35 | 098513-23 | Fuel Tank ( No Longer Available ) |
| 36 | M51108-01 | Shell Heat-Shield ( No Longer Available ) |
- Reddy Heaters R35E - 35,000 Btu/Hr.
- Kerosene Forced Air Heater
- R35E Heaters Heat up to 1600 sq. Ft.
- The 5 Gallon Tank Runs Approx. 9.5 Hours Per Tank
- R35E Reddy Heaters were Manufactured by Desa prior to 2009.
- See DESA Owners manual for more specifications @ www.DesaTech.com
Service Manual
