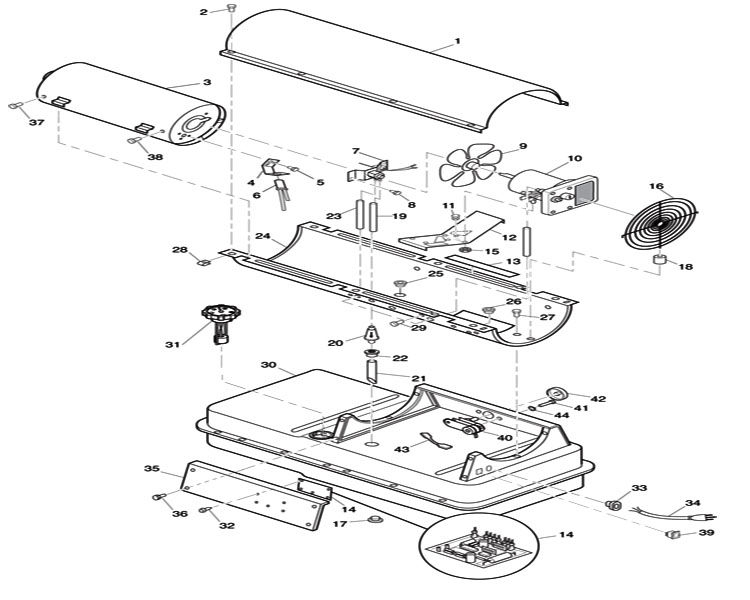

| 1 | 107353-10 |
Upper Shell (Service Part Will Be Black) ( No Longer Available ) |
| 2 | M15823-27 | Screw, #10-16 x 1/2 " ( No Longer Available ) |
| 3 | 098512-69 | Combustion Chamber ( No Longer Available ) |
| 4 | 103154-05 | Photocell Bracket ( No Longer Available ) |
| 5 | M10908-2 | Screw, #6-32 x 3/8 " |
| 6 | M16656-24 | Photocell Assembly |

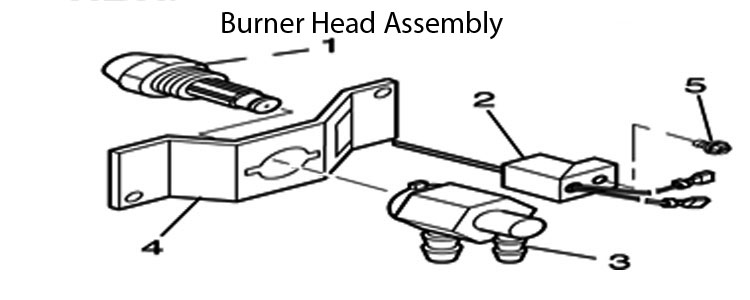

| 7 | See Below | Burner Head Assembly |
| 8 | M11084-26 | Screw, #10-16 x 3/8 " ( No Longer Available ) |
| 9 | 102042-01 | Fan |

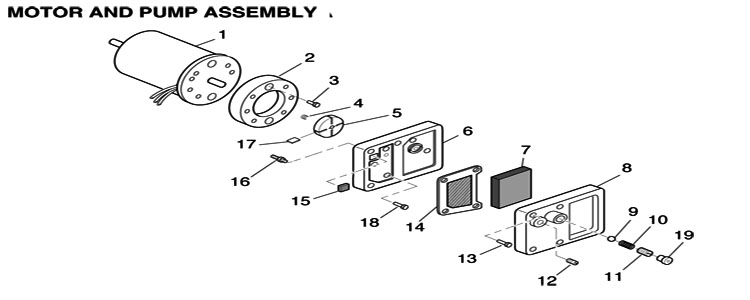

| 10 | See Below | Motor and Pump Assembly |
| 11 | M50631 | Rubber Bumper ( No Longer Available ) |
| 12 | 101206-01 | Motor Mounting Bracket ( No Longer Available ) |
| 13 | 097785-04 | Foam Gasket ( No Longer Available ) |
| 14 | 104068-02 | Ignition Control Assembly |
| 15 | NTC-4C | Hex Lock Nut, 1/4-20 ( No Longer Available ) |
| 16 | 102756-01 | Fan Guard |
| 17 | M27417 | Drain Plug (Includes "o" Ring) |
| 18 | 103523-01 | Rubber Bushing |
| 19 | M51345-03 | Fuel Line (Models with Fuel Valve Assembly) |
| | M51345-04 | Fuel Line (Models without Fuel Valve Assembly) |
| 20 | M51150-01 | Fuel Filter |
| 21 | M51345-04 | Fuel Line Tube (Models with Fuel Valve Assembly) |
| | M51151-02 | Fuel Line Tube (Models without Fuel Valve Assembly) |
| 22 | M10990-3 | Rubber Bushing |
| 23 | M50814-03 | Airline |
| 24 | 107353-11 | Lower Shell (Service Part Will Be Black) ( No Longer Available ) |
| 25 | M50104-06 | Bushing ( No Longer Available ) |
| 26 | M50104-01 | Bushing ( No Longer Available ) |
| 27 | M11084-26 | Screw, #10-16 x 3/8 " ( No Longer Available ) |
| 28 | M11271-8 | Clip Nut |
| 29 | M10908-14 | Screw, #8-32 x 3/8 " |
| 30 | 108088-17 | Fuel Tank (Metal Filler Neck) ( No Longer Available ) |
| | 113279-04 | Fuel Tank (Plastic Filler Neck) ( No Longer Available ) |
| 31 | 097663-03 | Fuel Cap w/ Gauge (includes Gasket) |
| | 113280-03 | (Use with Fuel Tank 108088-17) Fuel Cap w/ Gauge (includes Gasket) |
| | | (Use with Fuel Tank 113279-04) |
| 32 | 102349-01 | P.C. Board Support ( No Longer Available ) |
| 33 | M11143-1 | Strain Relief Bushing |
| 34 | 113065-01 | Power Cord |
| 35 | 107333-04AA | Side Cover ( No Longer Available ) |
| 36 | M11084-26 | Screw, #10-16 x 3/8 " ( No Longer Available ) |
| 37 | 099230-01 | Screw, Special |
| 38 | M11084-27 | Screw, #10-16 x 1/2 " |
| 39 | 113461-01 | ON/OFF Switch with Cover |
| 40 | 104458-01 | Thermostat |
| 41 | M12461-18 | Screw, #8-32 x 7/8 " ( No Longer Available ) |
| 42 | 104460-01 | Thermostat Knob |
| 43 | 079010-35 | Wire Assembly ( No Longer Available ) |
| 44 | WLE-2 | Lock Washer, EXT #8 ( No Longer Available ) |
