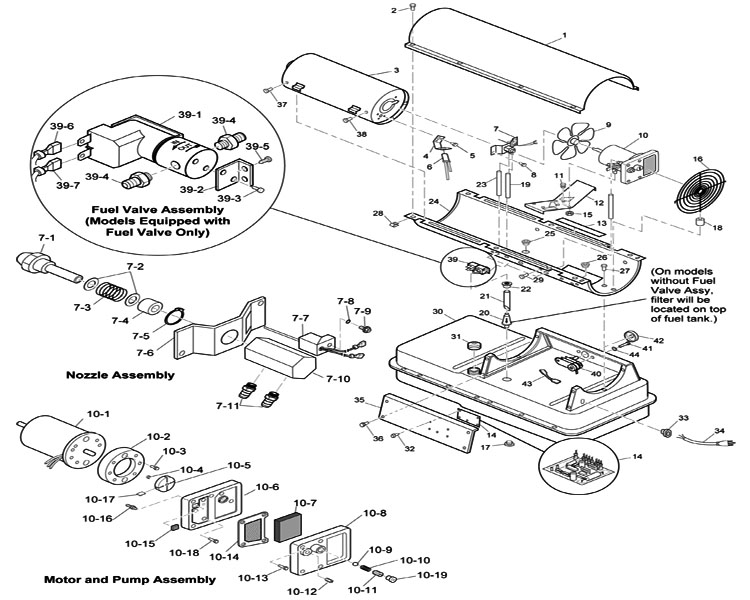

R200A



1 107353-10 Upper Shell (Service Part Be Black ) ( No Longer Available )
2 M15823-27 Screw, #10-16 x 1/2 " ( No Longer Available )
3 098512-69 Combustion Chamber ( No Longer Available )
4 103154-05 Photocell Bracket ( No Longer Available )
5 M10908-2 Screw, #6-32 x 3/8 "
6 M16656-24 Photocell Assembly
7 **** Burner Head Assembly
7-1 100735-13 Nozzle Assembly
7-2 M10659-1 Nozzle Washer
7-3 M10809-1 Nozzle Spring
7-4 M8882 Nozzle Sleeve
7-5 107272-01 Retaining Ring ( No Longer Available )
7-6 102336-03 Nozzle Adapter Bracket
7-7 102548-03 Ignitor Kit
7-8 103347-01 Belleville Washer ( No Longer Available )
7-9 M10908-75 Screw, #6-32 x .88
7-10 107273-01 Nozzle Adapter
7-11 M50820-02 Barb Fitting
8 M11084-26 Screw, #10-16 x 3/8 " ( No Longer Available )
9 102042-01 Fan
10 **** Motor and Pump Assembly
10-1 102001-27 Motor
10-2 079975-03 Pump Body
10-3 FHPF3-6C Screw, #10-32 x 5/8 "
10-4 M22009** Rotor Insert
10-5 M22456-2** Pump Rotor ( Use Replacement PP205 )
10-6 M50545 Pump End Cover
10-7 M12179*** Intake Filter ( Use Replacement PP214 )
10-8 M16545 Filter End Cover
10-9 M8940‡ Steel Ball, 1/4 Diameter " ( Use Replacement PP217 )
10-10 M10993-1‡ Relief Spring ( Use Replacement PP217 )
10-11 M27694‡ Adjusting Screw ( Use Replacement PP217 )
10-12 M22997‡ Plug ( Use Replacement PP217 )
10-13 M12461-31 Screw, #10-32 x 1 "
10-14 M12244-1*** Output Filter
10-15 M11637*** Lint Filter
10-16 M50820-02 Barb Fitting
10-17 M8643-2** Blade ( Use Replacement PP205 )
10-18 M12461-32 Screw, #10-32 x 1.12 " ( No Longer Available )
10-19 105780-01 Plastic Cap
11 M50631 Rubber Bumper ( No Longer Available )
12 101206-01 Motor Mounting Bracket ( No Longer Available )
13 097785-04 Foam Gasket ( No Longer Available )
14 104068-02 Ignition Control Assembly
15 NTC-4C Hex Lock Nut, 1/4-20 ( No Longer Available )
16 102756-01 Fan Guard
17 M27417 Drain Plug (Includes "o" Ring)
18 103523-01 Rubber Bushing
19 M51345-03 Fuel Line (Models with Fuel Valve Assembly )
M51345-04 Fuel Line (Models without Fuel Valve Assembly )
20 M51150-01*** Fuel Filter
21 M51345-04 Fuel Line Tube (Models withFuel Valve Assy)
M51151-02 Fuel Line Tube (Models without Fuel Valve Assy)
22 M10990-3 Rubber Bushing
23 M50814-03 Airline
24 107353-11 Lower Shell (Service Part Be Black ) ( No Longer Available )
25 M50104-06 Bushing ( No Longer Available )
26 M50104-01 Bushing ( No Longer Available )
27 M11084-26 Screw, #10-16 x 3/8 " ( No Longer Available )
28 M11271-8 Clip Nut
29 M10908-14 Screw, #8-32 x 3/8 "
30 108088-06 Fuel Tank ( No Longer Available )
31 097702-01 Fuel Cap (Includes Gasket)
32 102349-01 P.C. Board Support ( No Longer Available )
33 M11143-1 Strain Relief Bushing
34 098219-38 Power Cord
35 107333-04AA Side Cover ( No Longer Available )
36 M11084-26 Screw, #10-16 x 3/8 " ( No Longer Available )
37 099230-01 Screw, Special
38 M11084-27 Screw, #10-16 x 1/2 "
39 **** Fuel Valve Assembly ( Modles Equipped with Fuel Valve Only )
39-1 107643-01 Fuel Valve
39-2 107336-01 Fuel Valve Bracket ( No Longer Available )
39-3 M12461-13 Hex Head Screw, #8-32 x 1/4 "
39-4 M50820-02 Fitting Barb
39-5 102432-01 Screw Hex Hd Sems Ext B #10-16 x 1/2 "
39-6 107274-01 Wire Assembly, Red ( No Longer Available )
39-7 107274-02 Wire Assembly, White ( No Longer Available )
40 104458-01 Thermostat
41 M12461-18 Screw, #8-32 x 7/8 " ( No Longer Available )
42 104460-01 Thermostat Knob
43 079010-35 Wire Assembly ( No Longer Available )
44 WLE-2 Lock Washer, EXT #8 ( No Longer Available )
