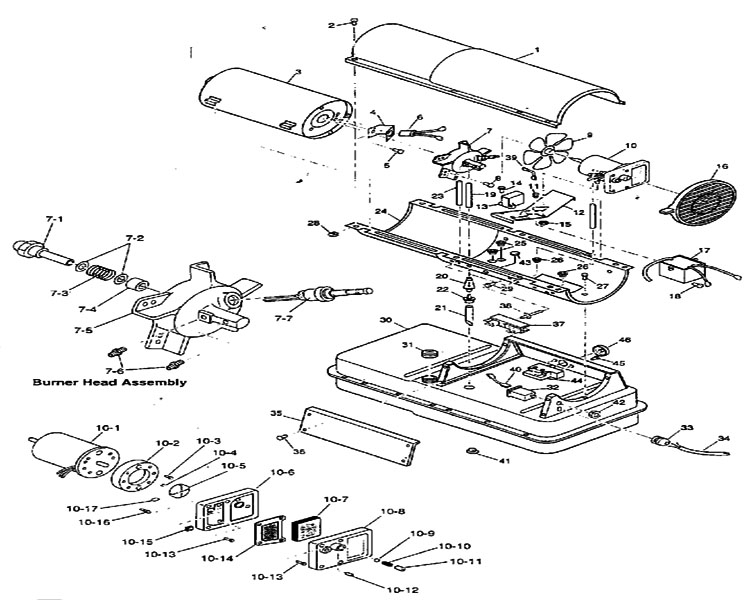

| 1 |
098511-138 |
Upper Shell ( Use Replacement 098511-144 ) |
| 2 |
100647-01 |
Screw #10-16 x 1/2" ( Use Replacement M15823-27 ) |
| 3 |
098512-36 |
Combustion Chamber ( No Longer Available ) |
| 4 |
099229-01 |
Photocell Bracket ( No Longer Available ) |
| 5 |
M10906-2 |
Screw #6-32 x 3/8" |
| 6 |
HA3019 |
Photocell Assembly ( Use Replacement PP216 ) |
| 7 |
**** |
Burner Head Assembly |
| 7-1 |
HA3023 |
Nozzle with Sleeve ( Use Replacement PP218 ) |
| 7-2 |
M10659-1 |
Nozzle Washer |
| 7-3 |
M10809-1 |
Nozzle Spring |
| 7-4 |
M8882 |
Nozzle Sleeve |
| 7-5 |
M50924-07 |
Burner Head Body ( No Longer Available ) |
| 7-6 |
M50820-02 |
Barb Fitting |
| 7-7 |
HA3012 |
Spark Plug ( Use Replacement PP211 ) |
| 8 |
M11084-27 |
Screw #10-16 x 1/2" |
| 9 |
101897-01 |
Fan ( No Longer Available ) |
| 10 |
**** |
Motor and Pump Assembly |
| 10-1 |
097300-02 |
Motor ( Use Replacement 097308-06 ) |
| 10-2 |
079975-02 |
Pump Body |
| 10-3 |
FHPF3-5C |
Screw #10-32 x 5/8" |
| 10-4 |
M22009 |
Rotor Insert |
| 10-5 |
M22456-1 |
Pump Rotor ( Use Replacement PP204 ) |
| 10-6 |
M50545 |
Pump End Cover |
| 10-7 |
M12179 |
Intake Filter ( Use Replacement PP214 ) |
| 10-8 |
M16545 |
Filter End Cover |
| 10-9 |
M8940 |
Steel Ball 1/4" Dia ( Use Replacement PP217 ) |
| 10-10 |
M10993-1 |
Relief Spring ( Use Replacement PP217 ) |
| 10-11 |
M27694 |
Adjusting Screw ( Use Replacement PP217 ) |
| 10-12 |
M22997 |
Plug ( Use Replacement PP217 ) |
| 10-13 |
M12461-31 |
Screw #10-32 x 1" |
| 10-14 |
M12244-1 |
Output Filter |
| 10-15 |
M11637 |
Lint Filter |
| 10-16 |
M50820-02 |
Barb Fitting |
| 10-17 |
M8643 |
Blade ( Use Replacement PP204 ) |
| 11 |
M50631 |
Rubber Bumper ( No Longer Available ) |
| 12 |
101206-01 |
Motor Mounting Bracket ( No Longer Available ) |
| 13 |
097061-01 |
Solid State Relay ( Use Replacement 107850-01 ) |
| 14 |
M15823-39 |
Screw #8-18 x 1/2" |
| 15 |
NTC-4C |
Hex Lock Nut 1/4-20 ( No Longer Available ) |
| 16 |
M51114-01 |
Fan Guard |
| 17 |
102482-01 |
Ignitor Kit |
| 18 |
M11084-29 |
Scrw #10-16 x 3/4" |
| 19 |
M51345-01 |
Fuel Line |
| 20 |
M51150-01 |
Fuel Filter |
| 21 |
M51151-02 |
Fuel Line Tube |
| 22 |
M10990-3 |
Rubber Bushing |
| 23 |
M50814-03 |
Airline |
| 24 |
098511-140 |
Lower Shell |
| 25 |
M50104-03 |
Bushing ( No Longer Available ) |
| 26 |
M50104-01 |
Bushing ( No Longer Available ) |
| 27 |
M11084-27 |
Screw # 10-16 x 1/2" |
| 28 |
M11271-8 |
Clip Nut |
| 29 |
M10908-14 |
Screw #8-32 x 3/8" |
| 30 |
098513-57 |
Fuel Tank |
| 31 |
097702-01 |
Fuel Cap ( Includes Gasket ) |
| 32 |
HA3003 |
Flame Out Control ( Use Replacement PP203 ) |
| 33 |
M11143-1 |
Strain Relief Bushing |
| 34 |
098219-24 |
Power Cord ( Use Replacement 098219-38 ) |
| 35 |
M51077-01AA |
Side Cover ( No Longer Available ) |
| 36 |
M11084-27 |
Screw #10-16 x 1/2" |
| 37 |
099125-03 |
Terminal Board |
| 38 |
099157-01 |
Rivet ( No Longer Available ) |
| 39 |
079010-20 |
Wire Assembly ( Red 18" ) ( No Longer Available ) |
| 40 |
M16841-57 |
Wire Assembly ( Red 6" ) ( No Longer Available ) |
| 41 |
M27417 |
Drain Plug |
| 42 |
099177-01 |
Hex Nut 3/8-27 |
| 43 |
099213-01 |
Button Plug ( No Longer Available ) |
| 44 |
097657-02 |
Thermostat ( Use Replacement 104458-01R ) |
| 45 |
M10908-1 |
Screw #6-32 x 1/4" |
| 46 |
097658-02 |
Knob ( Use Replacement 104905-01 ) |
