R110A
- MASTER HEATERS R110A COMMON REPLACEMENT PARTS
- 102001-30 Motor
- 104068-02 Ignition Control
- PP200 HSI Ignitor(replaces HA1000)
- PP214 Filter Kit (replaces HA3017, M12179)
- PP221 Nozzle (replaces HA3027)
- M16656-24 Photo Cell (replaces PP236)
- PP204 Rotor Kit (replaces HA3004)

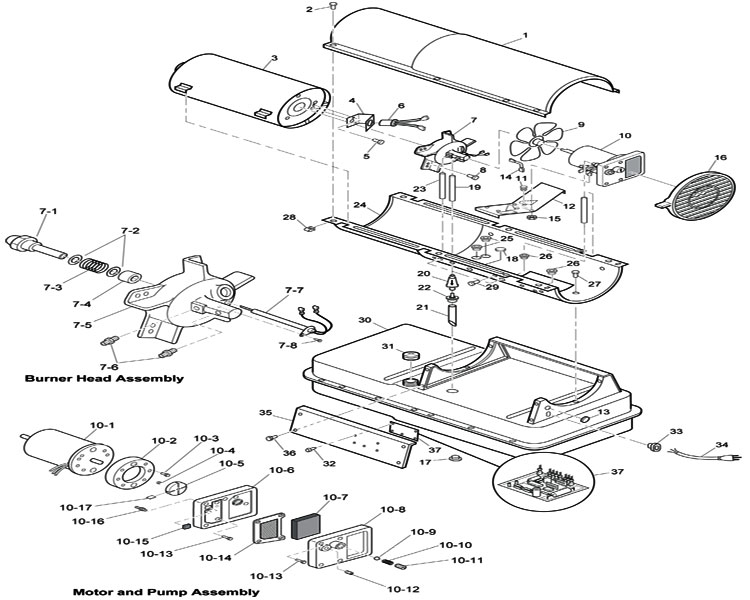

| 1 | 098511-138 | Upper Shell (Yellow) |
| 098511-66 | Upper Shell (Black) ( No Longer Available ) | |
| 098511-135 | Upper Shell (White) | |
| 2 | 100647-01 | Screw, #10-16 x 1/2 " ( Use Replacement M15823-27 ) |
| 3 | 098512-46 | Combustion Chamber ( No Longer Available ) |
| 4 | 099229-01 | Photocell Bracket ( No Longer Available ) |
| 5 | M10908-2 | Screw, #6-32 x 3/8 " |
| 6 | M16656-24 | Photocell Assembly |
| 7 | *** | Burner Head Assembly |
| 7-1 | HA3011 | Nozzle with Sleeve ( Use Replacement PP210 ) |
| 7-2 | M10659-1 | Nozzle Washer |
| 7-3 | M10809-1 | Nozzle Spring |
| 7-4 | M8882 | Nozzle Sleeve |
| 7-5 | M50924-06 | Burner Head Body |
| 7-6 | M50820-02 | Barb Fitting |
| 7-7 | 103068-01 | Ignitor |
| 7-8 | M10908-2 | Screw, #6-32 x 3/8 " |
| 8 | M11084-27 | Screw, #10-16 x 1/2 " |
| 9 | 097293-01 | Fan |
| 10 | *** | Motor and Pump Assembly |
| 10-1 | 097300-02 | Motor ( Use Replacement 097308-06 ) |
| 10-2 | 079975-02 | Pump Body |
| 10-3 | FHPF3-5C | Screw, #10-32 x 5/8 " |
| 10-4 | M22009 | Rotor Insert |
| 10-5 | M22456-1 | Pump Rotor ( Use Replacement PP204 ) |
| 10-6 | M50545 | Pump End Cover |
| 10-7 | M12179 | Intake Filter ( Use Replacement PP214 ) |
| 10-8 | M16545 | Filter End Cover |
| 10-9 | M8940** | Steel Ball, 1/4 Diameter " ( Use Replacement PP217 ) |
| 10-10 | M10993-1 | Relief Spring ( Use Replacement PP217 ) |
| 10-11 | M27694** | Adjusting Screw ( Use Replacement PP217 ) |
| 10-12 | M22997** | Plug ( Use Replacement PP217 ) |
| 10-13 | M12461-31 | Screw, #10-32 x 1 " |
| 10-14 | M12244-1 | Output Filter |
| 10-15 | M11637** | Lint Filter ( No Longer Available ) |
| 10-16 | M50820-02 | Barb Fitting |
| 10-17 | M8643 | Blade ( Use Replacement PP204 ) |
| 11 | M50631 | Rubber Bumper ( No Longer Available ) |
| 12 | 101206-01 | Motor Mounting Bracket ( No Longer Available ) |
| 13 | 101695-01 | Button Plug |
| 14 | 079010-25 | Wire Assembly (Black, 5.75) " |
| 15 | NTC-4C | Hex Lock Nut, 1/4-20 ( No Longer Available ) |
| 16 | M51114-01 | Fan Guard |
| 17 | M27417 | Drain Plug (Includes "o" Ring) |
| 18 | 099213-01 | Button Plug ( No Longer Available ) |
| 19 | M51345-01 | Fuel Line |
| 20 | M51150-01 | Fuel Filter |
| 21 | M51151-01 | Fuel Line Tube (110 model) |
| 22 | M10990-3 | Rubber Bushing |
| 23 | M50814-03 | Airline |
| 24 | 098511-140 | Lower Shell (Yellow) |
| 098511-137 | Lower Shell (White) ( No Longer Available ) | |
| 098511-82 | Lower Shell (Black) ( No Longer Available ) | |
| 25 | M50104-03 | Bushing ( No Longer Available ) |
| 26 | M50104-01 | Bushing ( No Longer Available ) |
| 27 | M11084-27 | Screw, #10-16 x 1/2 " |
| 28 | M11271-8 | Clip Nut |
| 29 | M10908-14 | Screw, #8-32 x 3/8 " |
| 30 | 098513-21 | Fuel Tank (110 model) ( No Longer Available ) |
| 31 | 097702-01 | Fuel Cap (Includes Gasket) |
| 32 | 102349-01 | P.C. Board Support ( No Longer Available ) |
| 33 | M11143-1 | Strain Relief Bushing |
| 34 | 098219-19 | Power Cord ( Use Replacement 098219-38 ) |
| 35 | M51077-09AA | Side Cover ( No Longer Available ) |
| 36 | M11084-27 | Screw, #10-16 x 1/2 " |
| 37 | 103012-01 | Ignition Control Assembly |
| 38 | 103814-01 | Wire Tie (Not Shown) ( No Longer Available ) |
- Master Heaters R110A - 110,000 Btu/Hr.
- Kerosene Forced Air Heater
- R110A Heaters Heat up to 2700 sq. Ft.
- The 9 Gallon Tank Runs Approx. 10.5 Hours Per Tank
- R110A Master Heaters were Manufactured by Desa prior to 2009.
- See DESA Owners manual for more specifications @ www.DesaTech.com
